Road Frame710TCS
MOSSO The Super light
Road DISC frame!
Color :

technology

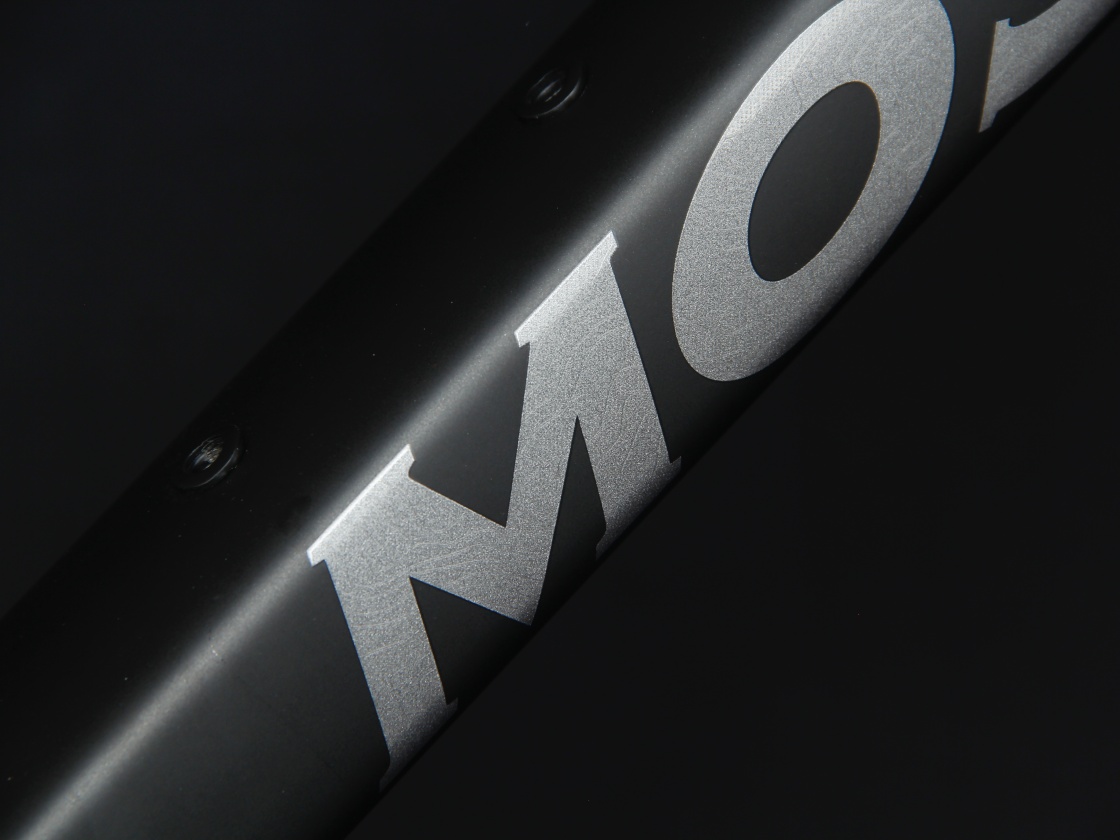

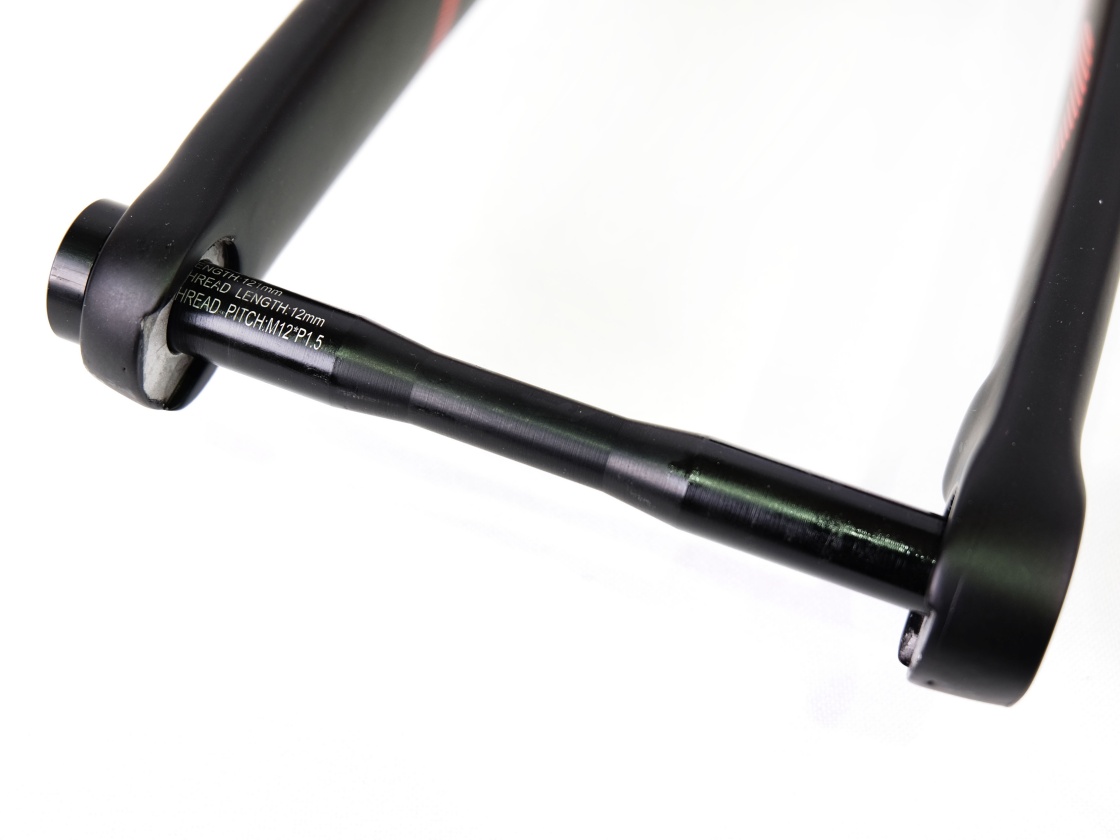

MOSSO 710TCS Road disc designing max.Fork can fit 35C terreno zero and and Frame tired up to 40C terreno wet. Using material aluminum 7005 Tube treatment for triple butted 7 tubes. Making the frame lighter and stronger. Exquisite surface Sticker which makes design more fun but not just sticker. Make you shine like a star.

Specifications

Sizeframe WeightBB lengthSeat postSeat clampHead set
440mm-590mm 1510g/500mm 86mm 31.6mm 34.9mm 42/52mm

Characteristic

SizeMATERIALTYPETYPE FOR USEPRICE
700C ALU 7005 Disc Road Professional $$$$$


Geometry

SIZE 440mm 470mm 500mm 530mm 560mm 590mm
1 - SEAT TUBE (mm) 440mm 470mm 500mm 530mm 560mm 590mm
2 - SEAT ANGLE (mm) 74° 74° 74° 74° 73.5° 73°
3 - TOP TUBE (mm) 510 520 525 540 560 575
4 - HEAD TUBE (mm) 120 125 130 140 155 170
5 - HEAD ANGLE (mm) 70.5° 70.5° 71° 71° 71.5° 71.5°
6 - BB DROP (mm) 66 66 66 66 66 66
7 - FORK LENGTH (mm) 380 380 380 380 380 380
8 - REACH (mm) 360 368.6 372.6 384.4 392.7 399.5
9 - STACK (mm) 523.3 528 534.5 544 566.1 574.3
10 - CHAINSTAY(mm) 415 415 415 415 415 415
11 - TIRES MAXIMUM 38C 38C 38C 38C 38C 38C

RECOMMENDATION
Check your perfect body shape and choose the ideal frame size!

GAllery

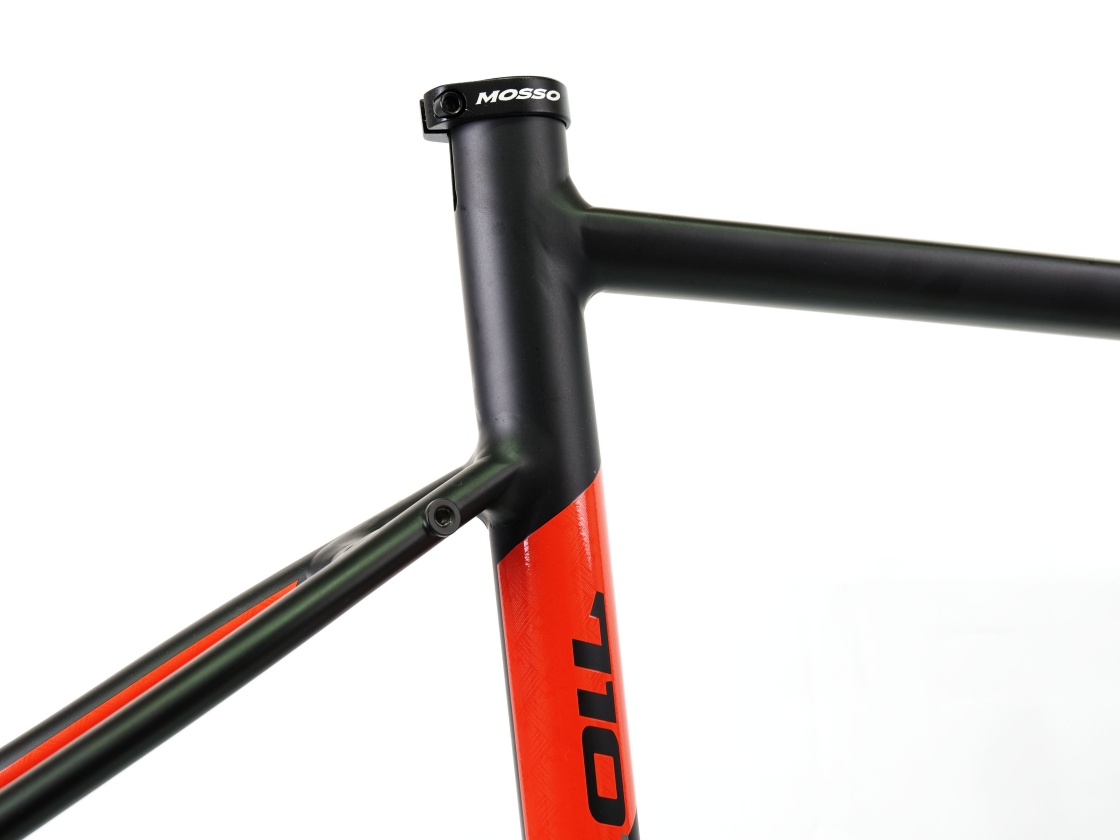

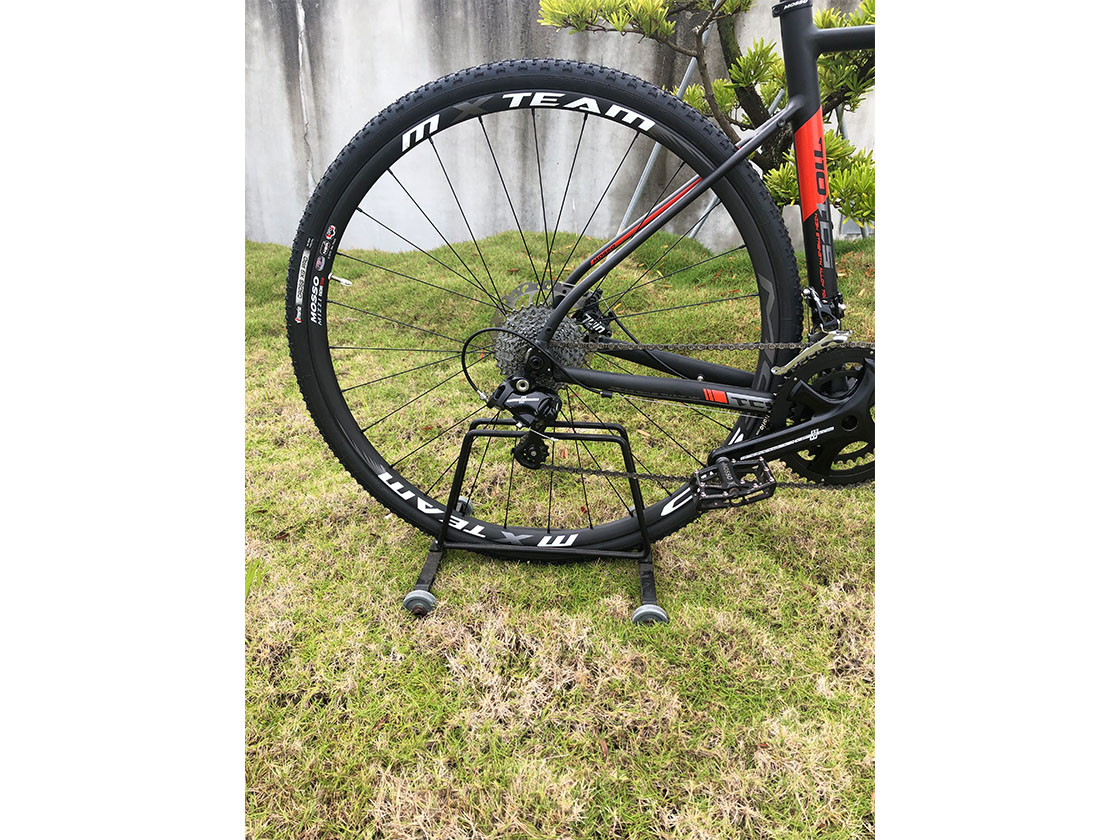

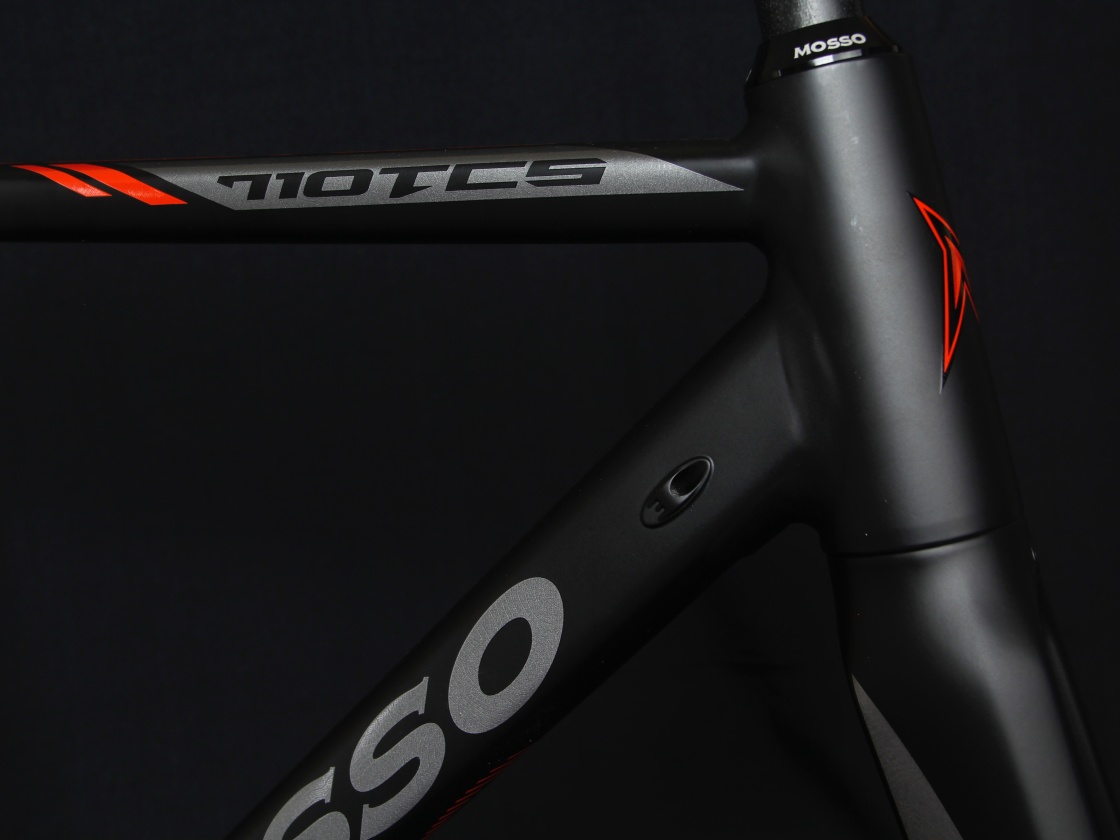

710TCS
